In modern sanitaryware manufacturing, designing a premium stainless steel kitchen faucet is far more than an aesthetic exercise. It is a precise balance of material integrity, high-precision machining, ergonomic functionality, modular engineering, and strict compliance with global lead-free standards.
When sourcing SUS304 or SUS316 stainless steel kitchen taps for B2B channels, understanding how design geometry influences manufacturing complexity—and how shared internal engineering drives reliability—is essential.

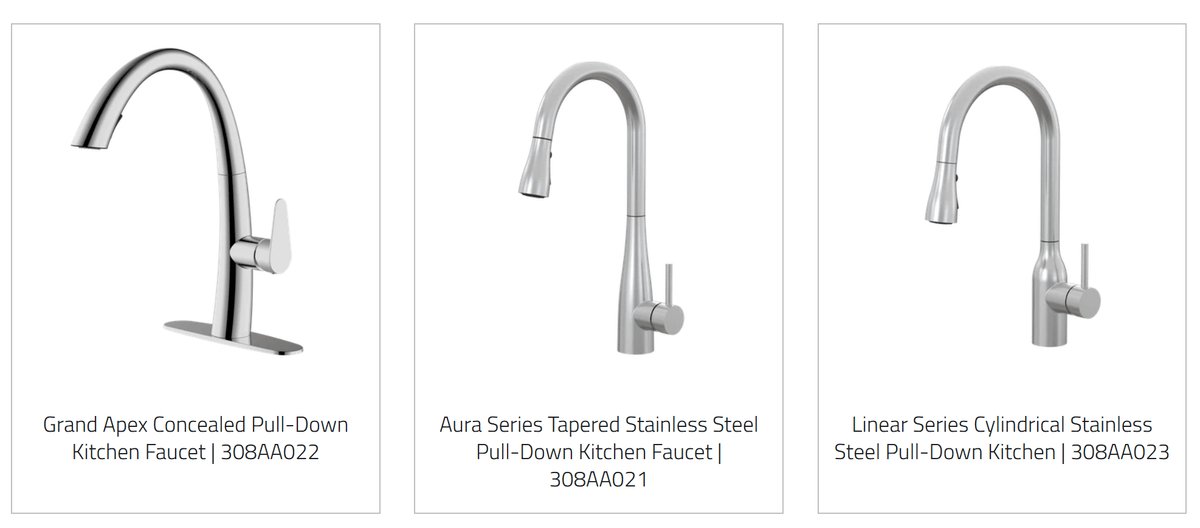

In this teardown analysis, we evaluate three distinct design architectures (308AA022, 308AA021, and 308AA023), dissecting their exterior craftsmanship, target market alignments, and the unified engineering core that powers them.
1. Grand Apex (308AA022): The Seamless Transitional Workhorse
Design & Silhouette
The 308AA022 features a sweeping high-arc gooseneck with an integrated, concealed pull-down sprayhead. It blends traditional American proportions with modern fluid lines, making it the quintessential Transitional style faucet.
Engineering & Manufacturing Nuances
- Seamless Sprayhead Integration: The core manufacturing challenge lies in the tight tolerance matching between the curved stainless steel spout tip and the pull-down sprayhead. Achieving a zero-gap, flush fit without optical breaks requires sub-millimeter precision in tube bending and sprayhead machining.
- Deep-Drawing & Tube Bending: Maintaining uniform wall thickness along the large-radius sweep prevents structural stress points and inner diameter deformation, ensuring smooth water flow and effortless hose retraction.
- Deck Plate Versatility: Designed to accommodate both single-hole and 3-hole (escutcheon deck plate) installations, catering to the North American replacement market
Best Fit For: North American retail brands, residential renovation projects, and classic-modern kitchen builds.
More details about the design, pls go to the link:
Grand Apex Concealed Pull-Down Kitchen Faucet | 308AA022
2. Aura Series (308AA021): Sculptural Organic Modernism
Design & Silhouette
The 308AA021 stands out with its sculpted tapered base (bottom-heavy profile) that transitions smoothly into a refined J-spout, balanced by a tactile pin handle. It exemplifies the Soft Organic Modern trend.
Engineering & Manufacturing Nuances
- Precision CNC & Tapered Profiling: Machining a smooth, tapered stainless steel body requires specialized multi-axis CNC lathe operations or investment casting with meticulous post-grinding. Eliminating tool marks on a conical surface demands multi-pass automated polishing.
- Pin Handle Torque Balance: The minimalist pin handle provides sleek visual minimalism but reduces leverage. Internal ceramic disc cartridges must be carefully calibrated for ultra-smooth, low-torque operation to deliver a lightweight tactile feel.
- Center of Gravity & Stability: The wider conical base distributes mechanical stress evenly across the countertop, making it exceptionally sturdy for heavy daily use.
Best Fit For: High-end residential developments, contemporary kitchen islands, and designer-driven OEM lines.
More details about the design, pls click below link:
Aura Series Tapered Stainless Steel Pull-Down Kitchen Faucet | 308AA021
3. Linear Series (308AA023): Architectural Minimalism
Design & Silhouette
The 308AA023 represents pure Scandinavian/Bauhaus minimalism. Built on an uncompromised cylindrical geometry, it strips away non-essential elements to highlight pure form and material purity.
Engineering & Manufacturing Nuances
- Surface Finish Uniformity: In pure cylindrical designs, any imperfection, waviness, or uneven brush stroke is instantly visible. Achieving a consistent 360-degree satin brushed (hairline) finish requires automated rotary brushing systems.
- Modular Internal Fitment: Leveraging the standardized 102AF279 cartridge seat allows the slim, uniform barrel body to house a robust, high-flow lead-free composite waterway without bulky exterior housing.
- Tight Radius Bending: Bending stainless steel tubing at sharp, clean angles without kinking or ovalization demands custom mandrel tube-bending tooling.
Best Fit For: European specifications, urban micro-apartments, commercial hospitality, and minimalist architectural projects.
Details about the design, pls go to below link:
4. Modular Platform Architecture: One Core, Infinite Expression
While 308AA022, 308AA021, and 308AA023 showcase completely different aesthetic silhouettes (from sweeping transitional to pure cylindrical), they share a common, highly engineered internal foundation.
The Standardized Core: Model 102AF279 Cartridge Seat
All three models utilize the exact same internal composite cartridge seat (Model 102AF279) and ceramic disc cartridge. This modular design strategy delivers massive benefits for OEM/ODM partners:
- Engineering Consistency: Guarantees identical hydraulic performance, precise temperature control, and uniform handle operational torque across diverse product lines.
- Supply Chain & Maintenance Efficiency: Standardizes core spare parts, streamlining global certification testing and significantly reducing inventory carrying costs for distributors.
Material Excellence: 50% Glass-Fiber Reinforced PPA + H59 Brass Inserts
To ensure long-term structural integrity in high-use kitchen environments, the 102AF279 cartridge seat combines advanced composite engineering with precision metallic reinforcement:
- 50% Glass-Fiber Reinforced PPA (50GF PPA): The main seat body is precision-molded using 50GF PPA sourced exclusively from top-tier global suppliers (e.g., BASF / EMS). This provides superior tensile strength, thermal resistance against boiling water, and zero heavy metal leaching in the waterway.
- H59 Brass Threaded Inserts for Maximum Torque Safety: Threaded connection points are critical vulnerability zones in polymer-based components. To completely eliminate the risk of thread stripping or stress cracking during high-torque installation, precision-machined H59 brass inserts are hot-melted/overmolded into the PPA body.
- Built-in Safety Redundancy: The synergy of rigid 50GF PPA and heavy-duty H59 brass threads ensures the core exceeds industry burst pressure and tensile strain standards, creating a virtually bulletproof internal architecture.
5. Material Integrity & Compliance: The Unseen Foundation
Regardless of the external silhouette, the true benchmark of modern B2B faucet manufacturing lies within:
- Grade 304 Stainless Steel Shell: Superior corrosion resistance, zero lead leaching (lead-free compliance under NSF/ANSI/CAN 61 & 372 and European DWD directives), and exceptional physical durability.
- "Core & Shell" Dual Architecture: By separating the structural outer stainless steel shell from the internal high-performance 50GF PPA composite waterway, water never comes into contact with trace heavy metals. This architecture also prevents outer thermal scalding during high-temperature water usage.
- 100% Quality Testing: Every finished unit undergoes dual pneumatic (air) and hydrostatic (water) leak testing, alongside automated torque testing for smooth handle operation.
Conclusion: Selecting the Right Architecture for Your Portfolio
By combining distinct aesthetic outer shells with a standardized, over-engineered 50GF PPA internal platform (102AF279), brand owners get the best of both worlds: tailored market appeal and uncompromised internal quality.
- Choose Grand Apex (308AA022) for broad market appeal, versatile replacement sales, and high-volume retail.
- Choose Aura Series (308AA021) to capture the growing premium residential and island-kitchen segment.
- Choose Linear Series (308AA023) for sleek architectural specifications, European exports, and minimalist developments.
