Shower height adjustment is a familiar feature in modern bathrooms. Yet, many conventional shower slidebars follow the same basic principle: the rail remains fixed to the wall, while the hand shower holder slides up and down to accommodate different users.
What if the rail itself could also be adjusted?
Dual-lifting shower slidebars introduce a different approach to shower height adjustment. By combining a movable hand shower holder with a vertically adjustable rail, this design expands the available adjustment options and offers greater flexibility for households with different user heights.
In this article, we explore the differences between conventional fixed slidebars and dual-lifting designs, the potential benefits of this approach, and the key considerations for bathroom brands evaluating the next generation of shower accessories.
1. How Conventional Fixed Shower Slidebars Work
A conventional shower slidebar consists of a wall-mounted rail and a sliding holder that supports the hand shower. Users adjust the shower height by moving the holder along the rail and securing it at a comfortable position.
This straightforward design offers several advantages:
- Simple height adjustment: The hand shower can be positioned at different heights along the rail.
- Familiar operation: The mechanism is easy for most users to understand.
- Flexible positioning: Different household members can adjust the hand shower to suit their preferences.
However, the available adjustment range depends partly on the length and mounting position of the fixed rail.
For households with users of significantly different heights, a longer rail may be considered to provide additional positioning flexibility. But a longer rail is not always the preferred solution for every bathroom design.
The challenge is not simply how far the hand shower holder can travel. It is how to provide a suitable range of adjustment while balancing usability, product dimensions and installation requirements.
2. Introducing Dual-Lifting Shower Slidebars
A dual-lifting shower slidebar takes a different approach by providing two independent height adjustments.
Adjustment 1: The hand shower holder moves along the rail.
As with a conventional slidebar, users can slide the hand shower holder up or down to find their preferred showering position.

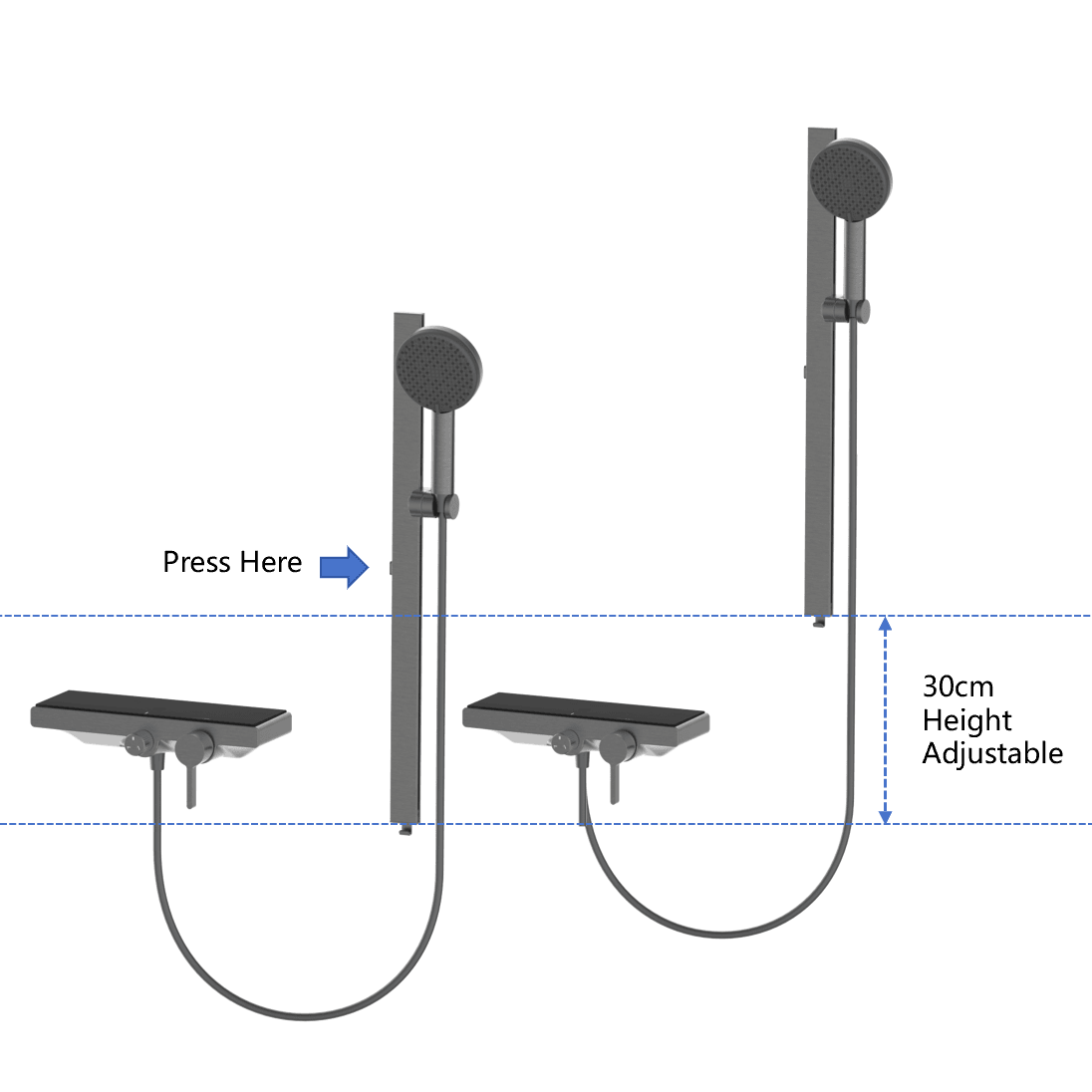

Adjustment 2: The rail itself moves vertically.
The entire slidebar can also be raised or lowered, extending the available height adjustment beyond the movement of the hand shower holder alone.
By combining these two movements, the system offers an additional way to accommodate different user heights without relying solely on a longer fixed rail.
For example, the AeroFlex dual-lifting shower slidebar from FBT features a 700 mm rail with an additional 300 mm of vertical travel. The rail's movement and the hand shower holder's movement work together to provide greater flexibility in positioning the hand shower.
The additional 300 mm refers to the rail's vertical travel, not necessarily the total usable adjustment range of the hand shower. The final range depends on the product's mechanical design and installation configuration.
3. Fixed vs. Dual-Lifting: Understanding the Differences
Both designs allow users to adjust hand shower height, but they approach the task differently.
Design consideration Fixed shower slidebar Dual-lifting shower slidebar
Hand shower adjustment Holder slides along the rail Holder slides along the rail
Rail movement Rail remains fixed Rail can also move vertically
Adjustment approach One primary movement Two independent movements
Rail length considerations Longer rails may be needed Additional rail travel can expand
for certain applications adjustment flexibility
Household suitability Accommodates users within Offers another adjustment option for
the available holder travel households with different user heights
Product design considerations Focuses on rail length, holder Also requires consideration of rail
movement and mounting travel, locking mechanisms and
position overall structural design
Dual-lifting designs are not necessarily a replacement for every conventional slidebar. Fixed rails remain a practical choice for many bathroom configurations.
Instead, the dual-lifting approach provides an additional design option for brands seeking greater flexibility in shower height adjustment.
4. Why Additional Height Adjustment Matters

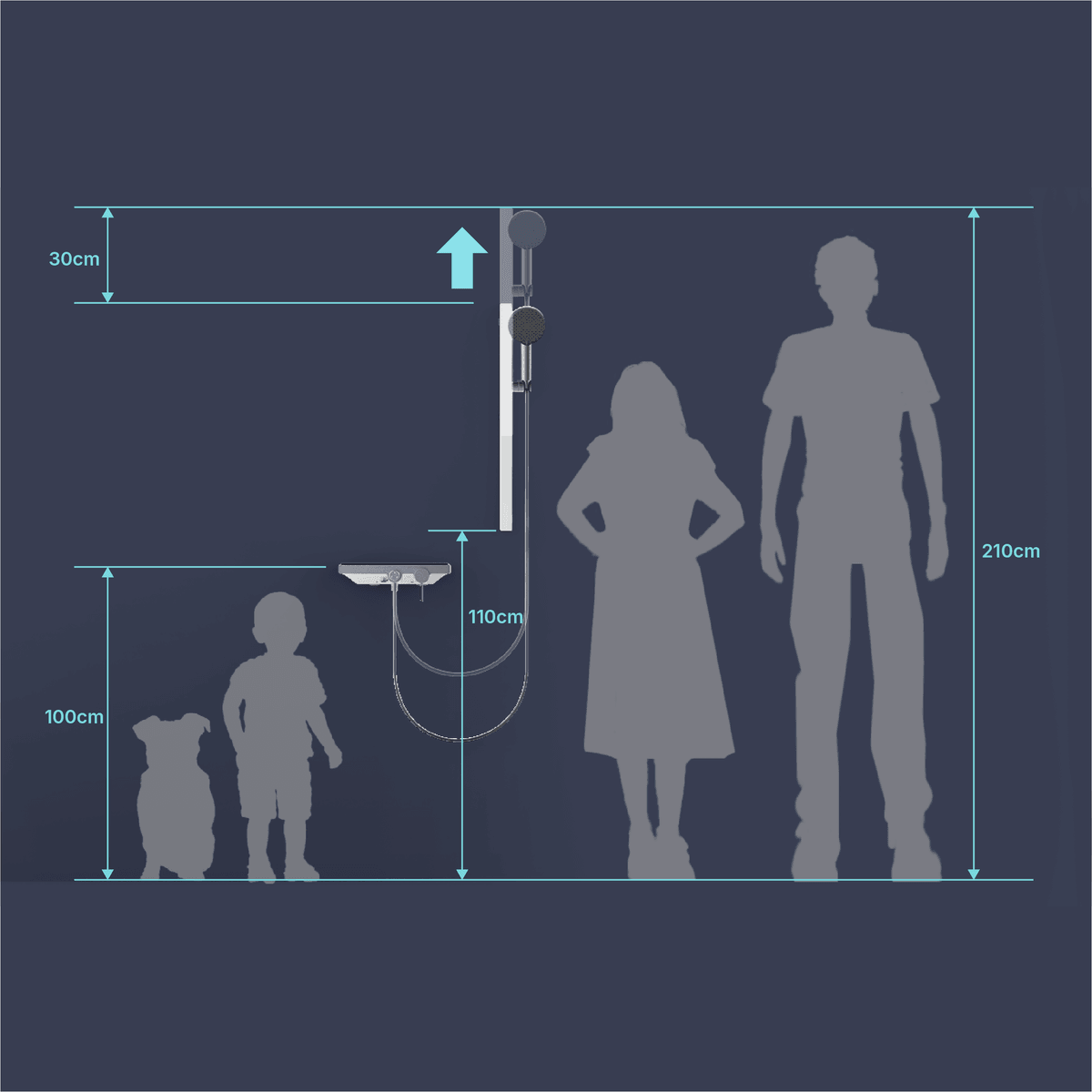

Accommodating Different User Heights
A bathroom may be shared by adults of different heights, teenagers and other family members. A shower position that feels comfortable for one person may not be ideal for another.
A dual-lifting system introduces another adjustment point, allowing users to reposition the rail as well as the hand shower holder.
This flexibility can be particularly relevant when developing shower solutions intended for shared household use.
Rethinking the Relationship Between Rail Length and Adjustment Range
Traditionally, extending the rail length is one way to increase the available positioning range of a hand shower holder.
A dual-lifting design introduces an alternative: use a rail with its own vertical travel to expand the available adjustment options.
This does not mean that a shorter rail will always outperform a longer fixed rail. The appropriate design depends on the required adjustment range, mounting conditions, user needs and bathroom layout.
However, the approach gives product developers another way to balance product dimensions with everyday usability.
Supporting More Flexible Bathroom Design
Bathroom accessories need to work within a range of installation conditions and design preferences.
A dual-lifting slidebar may offer product developers more flexibility when considering rail dimensions, adjustment requirements and the visual proportions of a shower installation.
For brands developing coordinated shower accessory collections, this functionality can also create a point of differentiation beyond conventional appearance and finish options.
5. The Role of Materials and Mechanical Design
Adding another adjustment movement introduces engineering considerations that go beyond the basic concept.
The rail must provide smooth movement while maintaining appropriate stability in its intended operating positions. The locking or push-button mechanism, mounting arrangement and sliding components all contribute to the user experience.
Material selection is another important factor.
AeroFlex uses an extruded aluminum rail profile. Aluminum extrusion offers design flexibility for developing a lightweight rail structure with a defined cross-sectional geometry and a clean, contemporary appearance.
When evaluating a dual-lifting slidebar, bathroom brands and product developers should consider several factors:
- Structural stability: Does the rail remain appropriately stable throughout its intended adjustment range?
- Adjustment operation: Can users raise, lower and secure the rail smoothly and intuitively?
- Holder performance: Does the hand shower holder remain securely positioned during normal use?
- Durability: Have the moving components and adjustment mechanism been evaluated for repeated operation?
- Installation compatibility: Are the mounting arrangement, wall conditions and required clearances suitable for the intended application?
- Finish quality: Does the selected finish meet the product's appearance and performance requirements?
These considerations are especially important when a new mechanism introduces additional moving components. Product evaluation should be based on the complete assembly rather than material selection alone.
6. What Bathroom Brands Should Consider When Selecting a Shower Slidebar
For brands, importers and distributors evaluating shower accessories, the choice between a fixed and dual-lifting slidebar should begin with the intended application.
Consider the following questions:
What adjustment range does the target user need?
Determine the expected user-height range and the required hand shower positioning range. Consider both the rail's movement and the holder's movement rather than assessing rail length alone.
How will the product be installed?
Wall mounting positions, existing plumbing arrangements, wall construction and available clearance may influence whether a movable rail is suitable.
How intuitive is the adjustment mechanism?
The product should make it clear how to adjust the holder and how to raise or lower the rail. Demonstrations and user testing can help identify potential usability issues.
What level of durability is required?
Repeated adjustment, locking performance, corrosion resistance and finish durability should be evaluated against the product's intended market and applicable requirements.
What differentiates the product within the collection?
In addition to adjustment functionality, design elements such as integrated accessories, distinctive front-facing details and coordinated finish options may help a product stand out in a competitive market.
A structured evaluation of these factors can help brands determine whether a conventional fixed rail or a dual-lifting design is better suited to their product strategy.
7. Exploring the AeroFlex Dual-Lifting Shower Slidebar
FBT's AeroFlex series applies the dual-lifting concept to shower slidebar design.
Featuring a 700 mm aluminum rail with an additional 300 mm of vertical travel, the system combines rail movement with independent hand shower holder adjustment.
The series includes two design variations:
AeroFlex Utility Dual-Lifting Slidebar with Integrated Hook | 204AA677-H
This version combines dual-lifting height adjustment with an integrated utility hook, adding a practical accessory-hanging point to the design.
This version combines the same dual-lifting concept with an integrated mirrored-glass feature, offering a distinctive design direction for contemporary shower spaces.
Both variations demonstrate how a shared adjustment mechanism can support different product aesthetics and functional configurations.
For bathroom brands looking to explore alternatives to conventional fixed slidebars, the AeroFlex series offers an example of how shower height adjustment can be approached from a different design perspective.
Conclusion: A Broader Approach to Shower Height Adjustment
Conventional fixed shower slidebars remain a practical solution for many bathrooms. Their familiar operating principle and straightforward design continue to meet a wide range of user needs.
Dual-lifting designs build on that established concept by introducing an additional adjustment movement: the rail itself can be raised or lowered while the hand shower holder moves independently along it.
The result is another way to approach shower height adjustment, particularly for applications where flexibility for users of different heights is an important consideration.
For bathroom brands and product developers, the key question is not whether one design is universally better than the other. It is which adjustment approach best meets the intended user's needs, installation conditions and product objectives.
